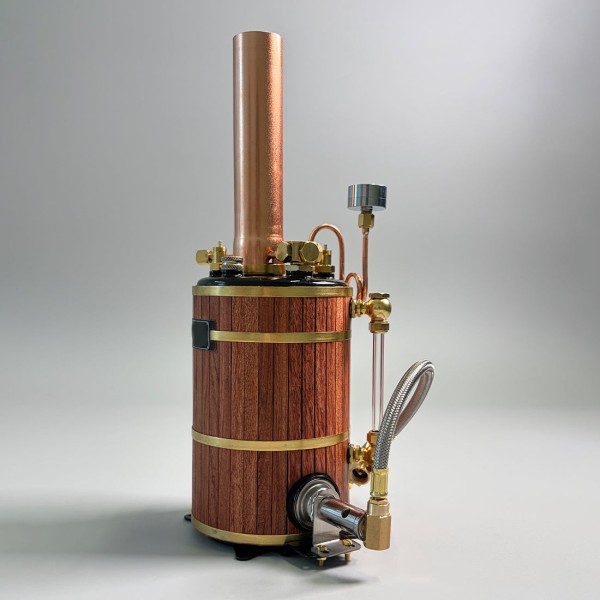

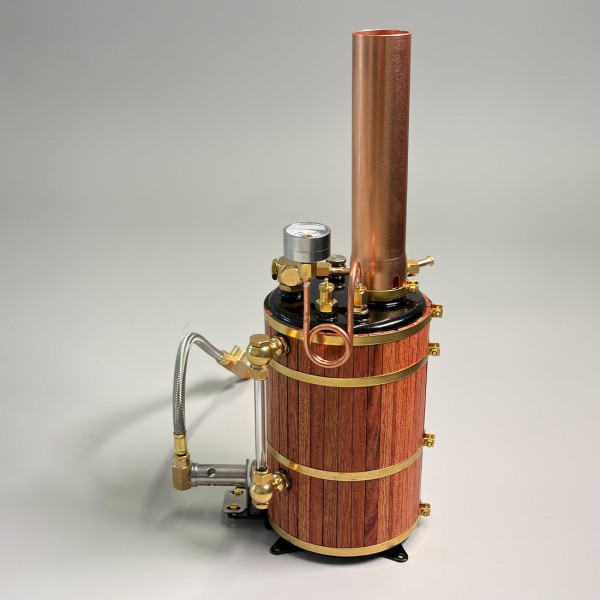

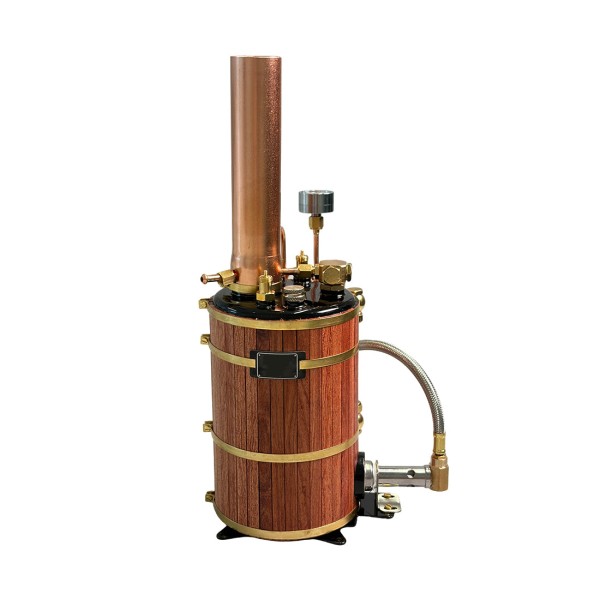

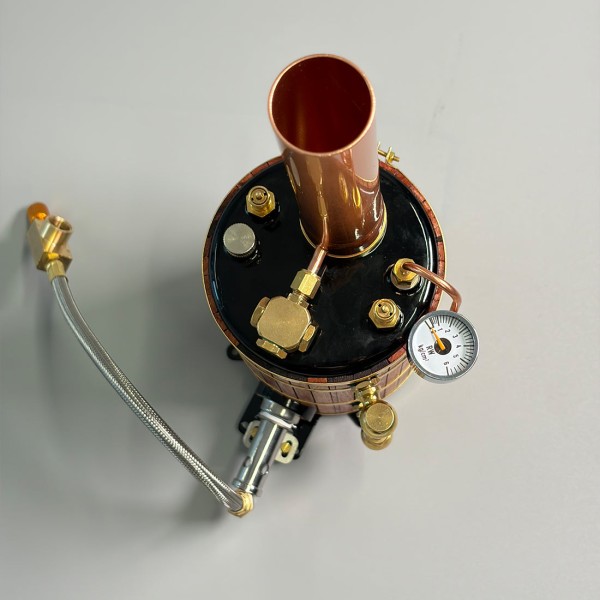

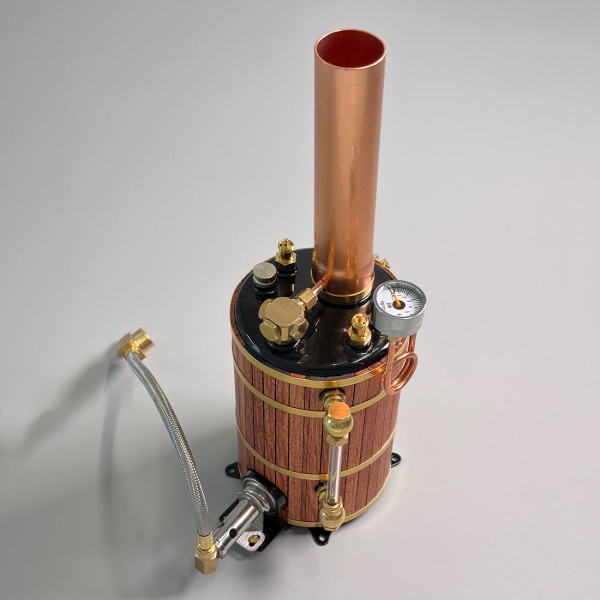

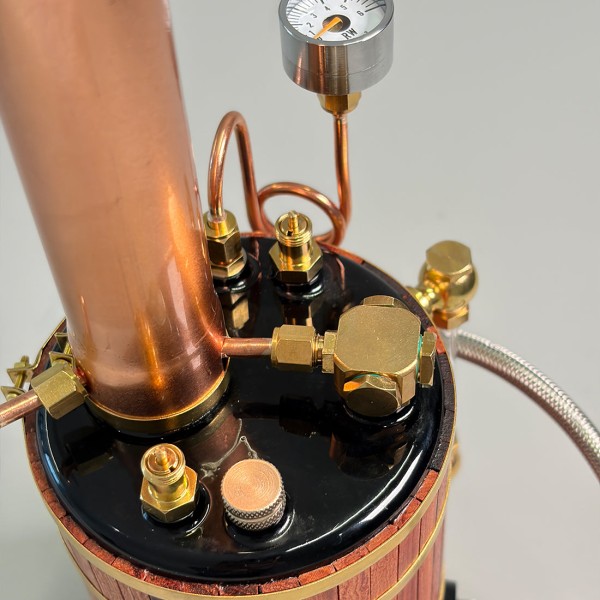

RW-B2 500mL Vertical Copper Steam Boiler for Model Ships is a 500 mL vertical copper boiler assembly with wood cladding, integrated butane burner tube, pressure gauge, water-level gauge and two supplier-described safety valves for model-ship steam systems. This page is written for buyers comparing RW-B2 500mL vertical steam boiler, copper steam boiler for 70 to 150cm model ship, vertical live steam boiler with pressure gauge, RW-B2 butane boiler M7 0.75 fitting and related working mechanical models.
RW-B2 500mL Vertical Copper Steam Boiler for Model Ships: Quick Answer

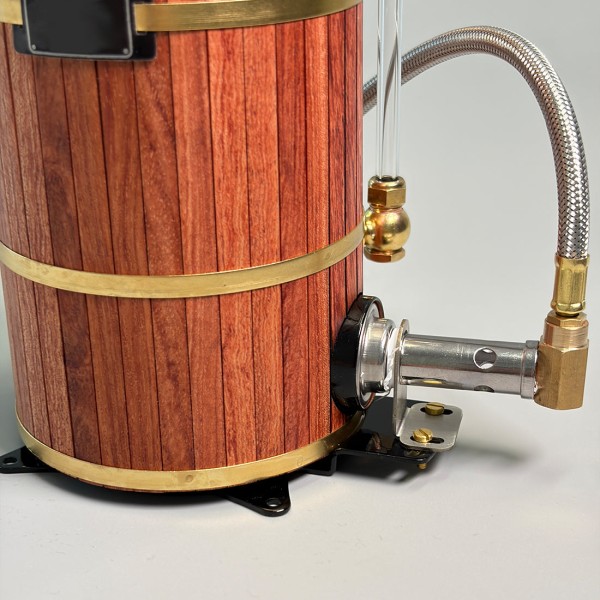

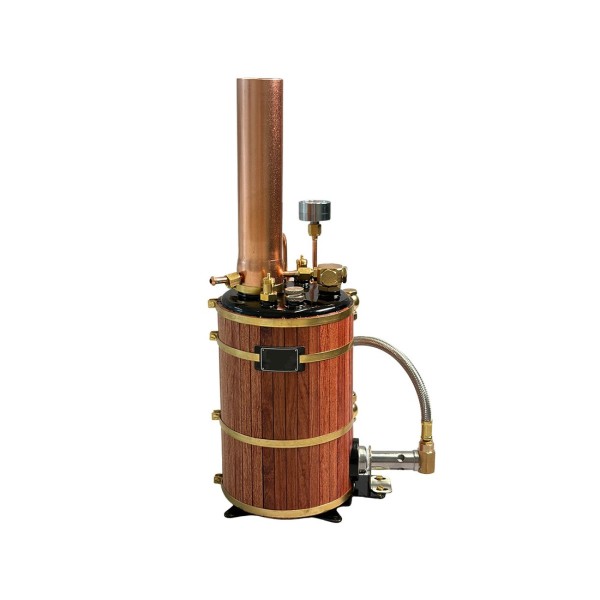

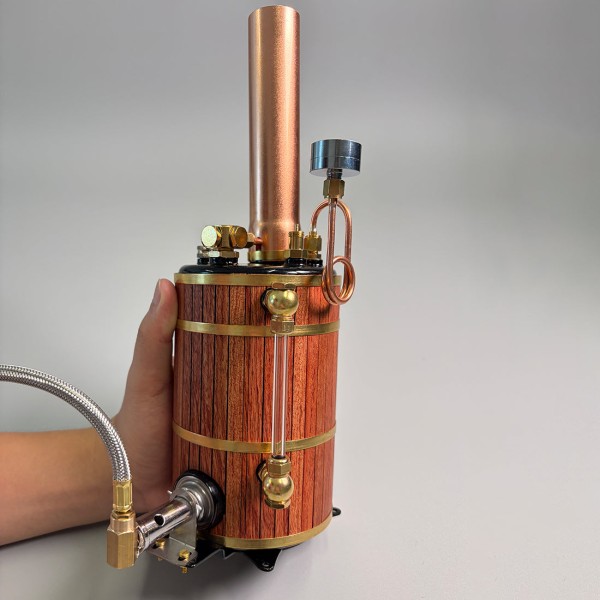

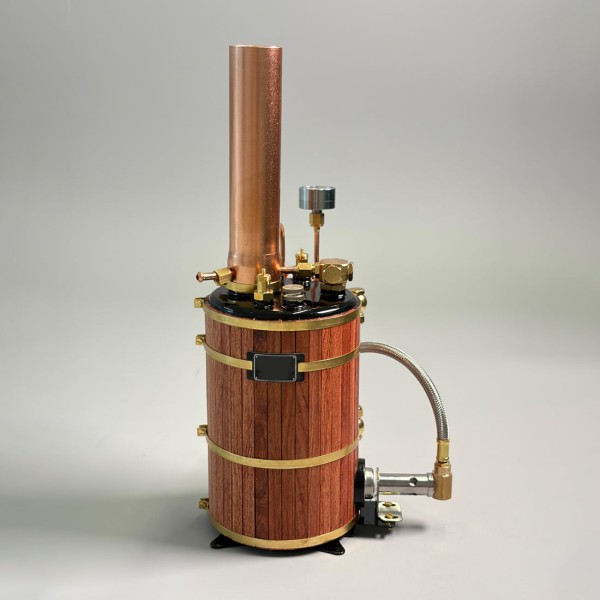

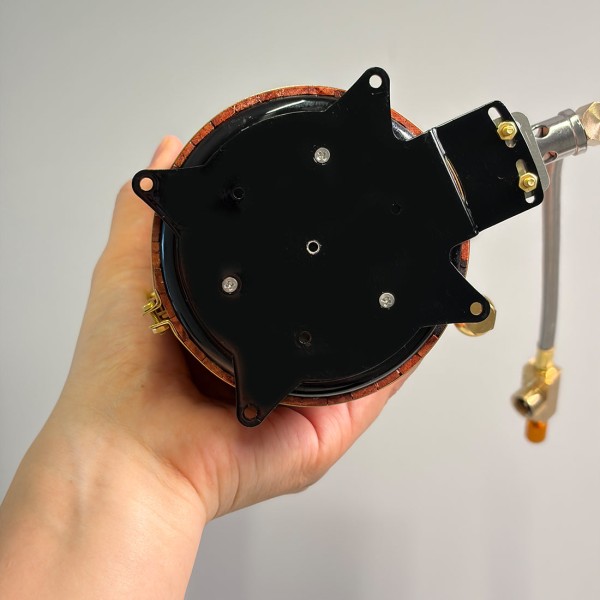

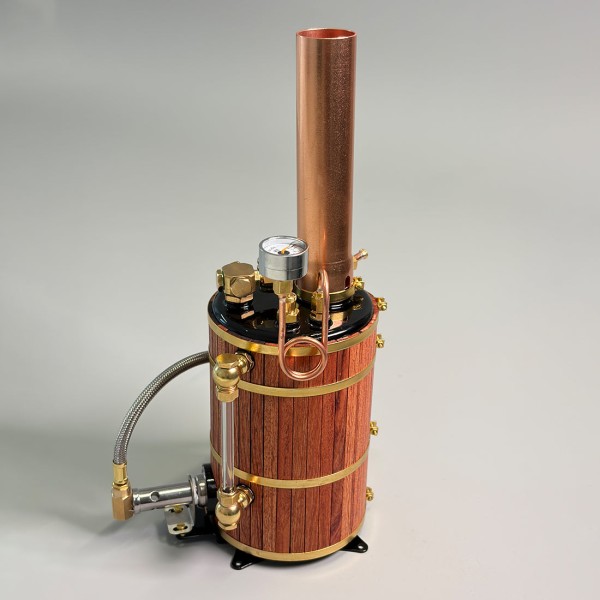

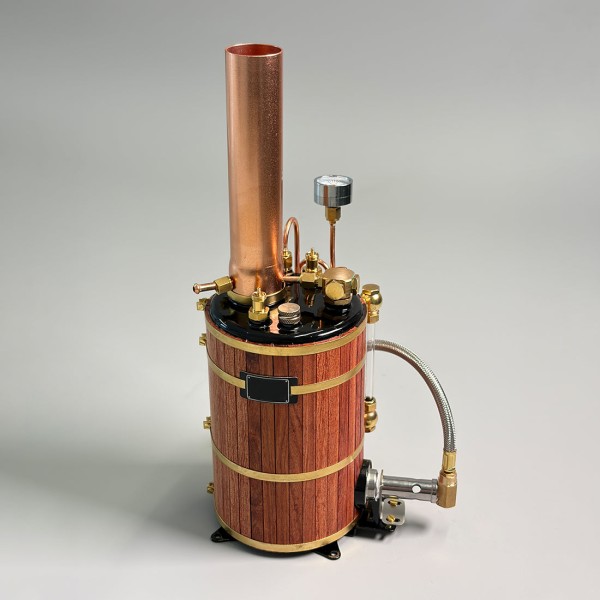

Choose this model when you want to study or operate the curved burner tube transfers heat into the water vessel; generated steam passes through the main valve and superheater connection to a compatible external engine. It is best suited to experienced adult live-steam builders able to verify every fitting, pressure control, fuel connection and vessel condition before commissioning. The white-background main image identifies the exact product architecture; the gallery shows additional angles, components and available configurations.
Verified Product Specifications
| Model | RW-B2 |
|---|---|
| Product type | Vertical live-steam boiler assembly for model ships |
| Materials | Copper and wood cladding |
| Capacity | 500 mL |
| Boiler diameter / height | 90 / 140 mm |
| Chimney height | 120 mm |
| Fuel | Butane gas; fuel not included |
| Supplier working pressure | 2-4 kg/cm² |
| Supplier safety-control pressure | 4.5-5 kg/cm² |
| Pressure gauge range | 0-6 bar |
| Connection thread | M7 x 0.75 |
| Supplier boat-size guidance | 70-150 cm |
| Weight | Approximately 1.5 kg |
| Evidence boundary | Supplier pressure values are published for comparison, not independently certified by EnginesDIY |
| Safety boundary | Adult live-steam operation only; inspect valves, gauge, water level and fuel connections before every firing |
Why This Model Is Different
- Clear engineering focus: the layout makes the curved burner tube transfers heat into the water vessel; generated steam passes through the main valve and superheater connection to a compatible external engine easier to observe than a generic closed display model.
- Configuration transparency: selectable versions are named explicitly and their price changes appear beside the option before checkout.
- Visual buying evidence: multiple gallery views help verify exterior finish, major components and supplied assembly state.
- Specialist fit: the product expands the collection into a distinct engine architecture rather than duplicating an existing listing.
Decision Framework: Fit Before Features
Evaluate this model in four passes: purpose (display, assembly study or operation), mechanism (what actually moves and how it is powered), operating burden (space, ventilation, charging, fuel and maintenance) and evidence (dimensions, gallery views and selected configuration). This prevents a visually similar model from being mistaken for the same mechanical system.
For comparison searches such as copper steam boiler for 70 to 150cm model ship, vertical live steam boiler with pressure gauge, RW-B2 butane boiler M7 0.75 fitting, prioritize the published mechanism and configuration over decorative styling. Scale, included electronics and power source can materially change the operating experience even when two products share a similar exterior.
How to Choose the Correct Version
- Confirm the selected option, assembly state, color or bundle before adding the item to the cart.
- Use the specification table and gallery to verify the power source, cooling method and visible accessories.
- For fuel, heat or live-steam products, confirm that you have the required operating experience, ventilation and safety equipment.
- For RC installation, measure the available envelope and verify the drivetrain, mounting, cooling and starting-system requirements.
Compatibility and Pre-Purchase Checklist
- Space: compare the published dimensions with the intended bench, hull, airframe, display case or driving area.
- Power: identify whether the selected version needs an external boiler, battery, charger, radio system, spindle tooling or other equipment not included in the package.
- Skill: match the product to your experience with assembly, calibration, fuel, live steam, CNC toolpaths or RC control.
- Evidence: treat supplier performance figures as configuration-dependent claims; use the gallery and manual to verify the delivered version before operation.
Safety and Operating Guidance
This is specialist model equipment, not an unsupervised children's toy. Keep moving parts guarded from loose clothing and hair. Operate fuel or steam models only in a ventilated area on a stable, heat-resistant surface. Use eye protection, follow the supplied manual and never exceed the specified fuel, electrical or pressure requirements.
Frequently Asked Questions
Is this a real working engine?
The specification table states whether the item is a fuel engine, live-steam mechanism or powered mechanical simulation. A moving educational model should not be interpreted as a full-size propulsion engine.
Does the selected version change the price?
Where options are present, each value uses the corresponding product configuration price. Review the updated price and option label before checkout.
Are the exact accessories shown included?
Only the components described by the selected configuration are included. Lifestyle scenes and engineering diagrams explain use or structure and should not be treated as a packing list.
Who should buy this model?
It is intended for experienced adult live-steam builders able to verify every fitting, pressure control, fuel connection and vessel condition before commissioning. Beginners should start with an electric simulation; fuel and live-steam products require experienced adult operation.
Evidence Boundaries
Dimensions, materials, bundle contents and performance figures are attributed to the supplier listing unless the table states otherwise. The independent sources below explain general engineering, workshop or operating-safety principles; they do not certify, endorse or test this individual product. EnginesDIY does not convert a supplier statement into an independent laboratory result.
Independent Engineering and Safety References
The following sources support the general engineering or safety guidance on this page. They do not endorse, test or certify this specific product.
- ASME Landmark: Watt Rotative Steam Engine — historical engineering context for Watt rotative steam machinery.
- Smithsonian: Mechanical and Civil Engineering Collections — museum context for steam machinery and mechanical artifacts.
- OSHA: Pressure Vessels, Drums and Containers — general pressure-vessel hazard and inspection principles.
- OSHA: Hazardous Motions and Actions — hazards from flywheels, cranks and reciprocating components.
- CPSC: Small Parts for Toys and Children’s Products — why small heated model components require age-appropriate control and supervision.
