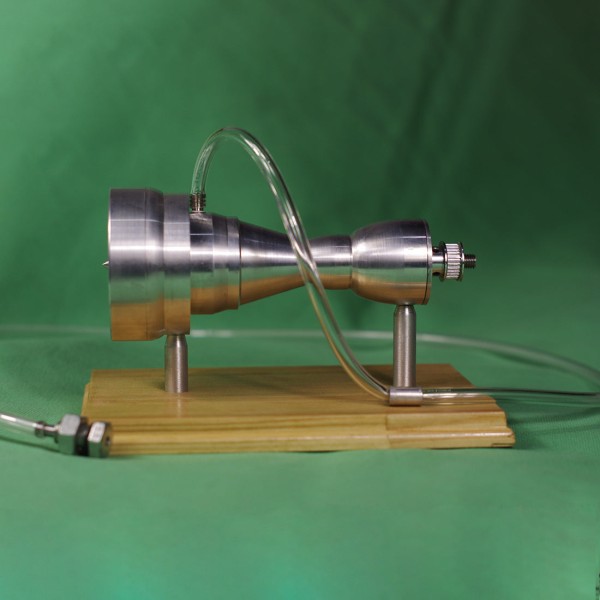

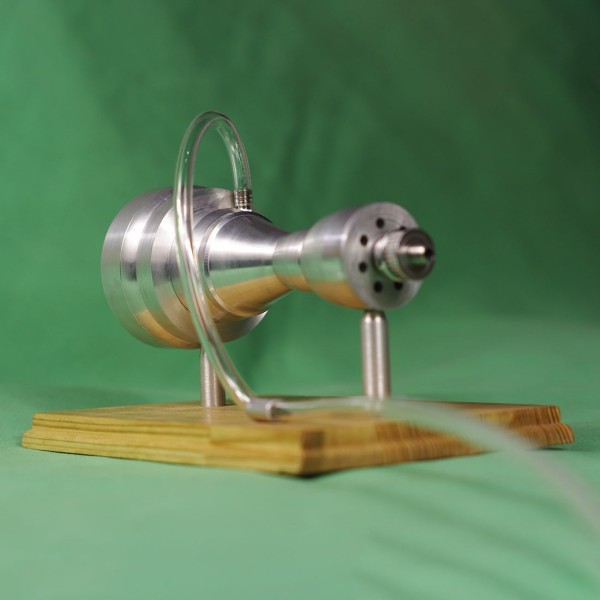

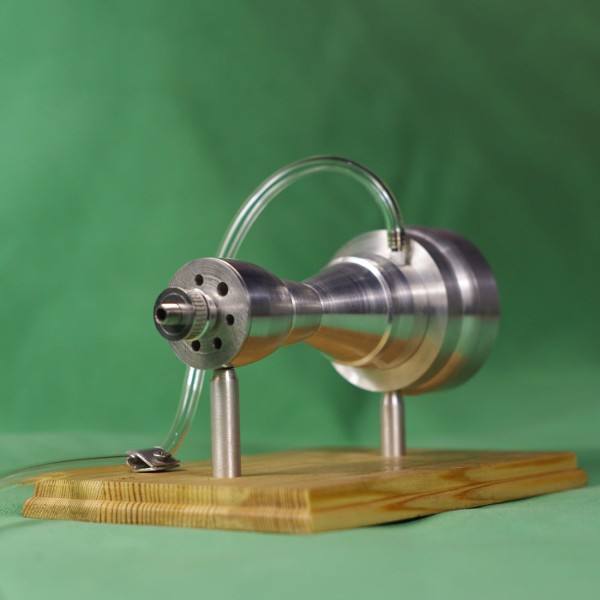

Low-Pressure Steam Turbine Demonstration Model is a metal-and-wood, low-pressure steam-driven rotor model whose multi-stage appearance borrows from aircraft-engine layouts but does not burn fuel or function as an aircraft gas turbine. This page is written for buyers comparing steam turbine demonstration model, aircraft inspired multistage steam turbine model, metal steam rotor science demonstration, 63mm inlet fan steam turbine teaching aid and related mechanical, physics and workshop models.
Low-Pressure Steam Turbine Demonstration Model: Quick Answer

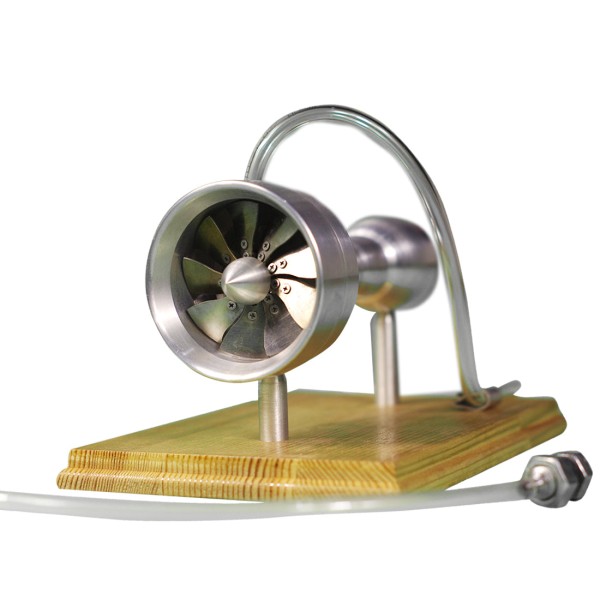

Choose this model when you want to study or operate steam flow transfers momentum to the staged rotor blades and spins the shaft; the supplier alters impeller geometry for the lower pressure and speed available from small model boilers. It is best suited to experienced adult steam-model operators comparing rotary steam conversion with reciprocating model engines and able to supply a compatible regulated steam source. The white-background main image identifies the exact product architecture; the gallery shows additional angles, components and available configurations.
Verified Product Specifications
| Energy source | External low-pressure steam supply; boiler not included |
|---|---|
| Construction stated | Metal turbine on wooden base |

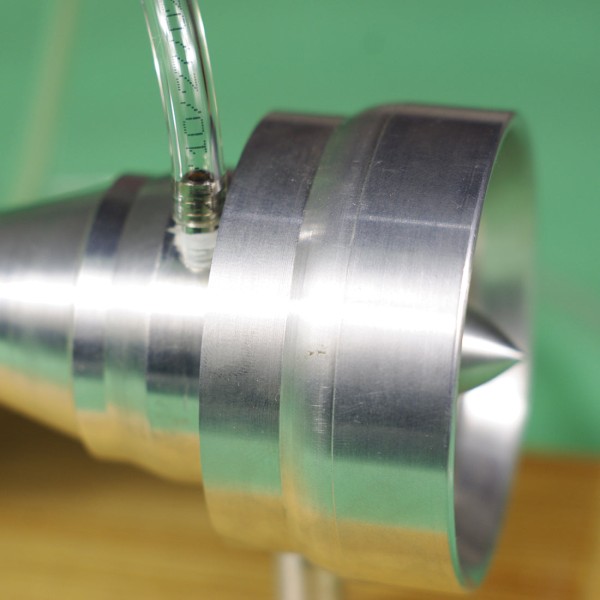

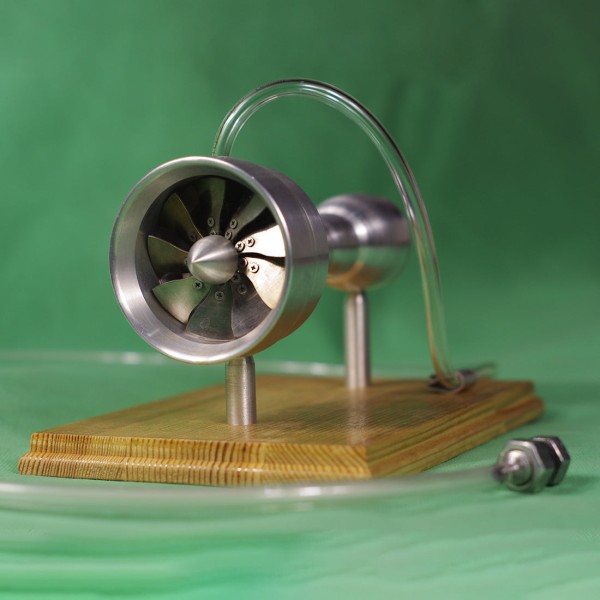

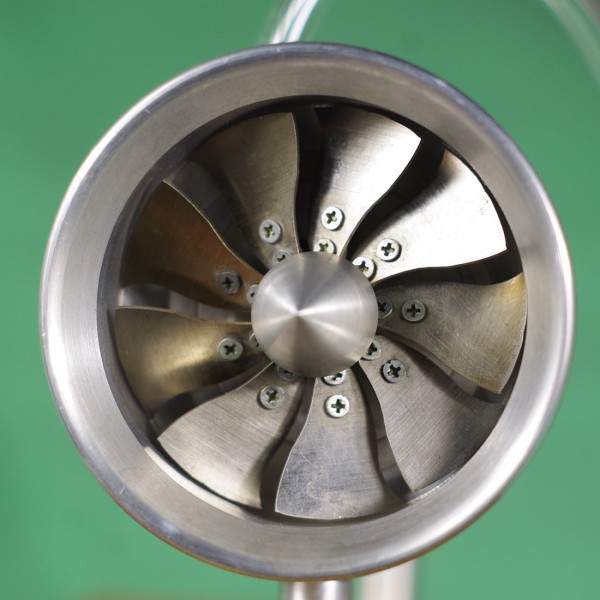

| Inlet fan stated | 63mm diameter at 42 degrees |
| Active impeller stated | 40mm diameter at 0 degrees |

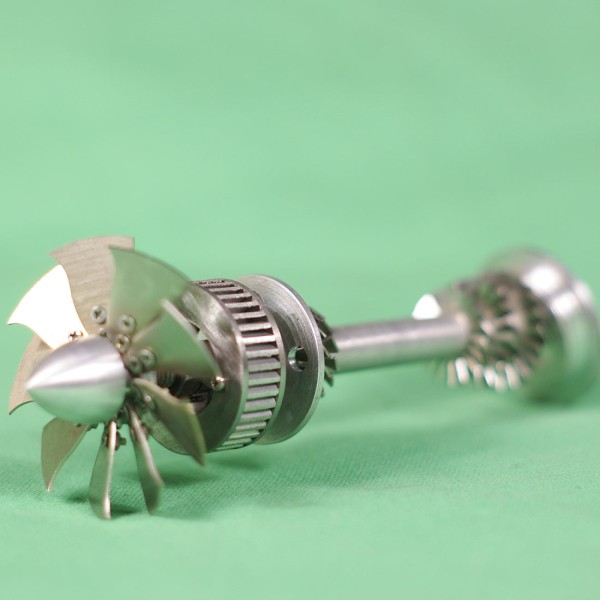

| Front stages stated | 35 / 30 / 26mm at 45 degrees |
| Rear stages stated | 34 / 32 / 24mm at 45 degrees |
| Speed statement | 8050r/min under supplier test description; not independently verified |
| Dimensions stated | 21 x 15 x 13cm |
| Product weight stated | 650g |
| Aircraft boundary | Aircraft-inspired appearance only; not a gas turbine and not propulsion equipment |
| Efficiency boundary | No relative-efficiency claim is adopted because the source does not provide a controlled comparison |
Why This Model Is Different
- Clear engineering focus: the layout makes steam flow transfers momentum to the staged rotor blades and spins the shaft; the supplier alters impeller geometry for the lower pressure and speed available from small model boilers easier to observe than a generic closed display model.
- Configuration transparency: selectable versions are named explicitly and their price changes appear beside the option before checkout.
- Visual buying evidence: multiple gallery views help verify exterior finish, major components and supplied assembly state.
- Specialist fit: the product expands the collection into a distinct engine architecture rather than duplicating an existing listing.
Decision Framework: Fit Before Features
Evaluate this model in four passes: purpose (display, assembly study or operation), mechanism (what actually moves and how it is powered), operating burden (space, ventilation, charging, fuel and maintenance) and evidence (dimensions, gallery views and selected configuration). This prevents a visually similar model from being mistaken for the same mechanical system.
For comparison searches such as aircraft inspired multistage steam turbine model, metal steam rotor science demonstration, 63mm inlet fan steam turbine teaching aid, prioritize the published mechanism and configuration over decorative styling. Scale, included electronics and power source can materially change the operating experience even when two products share a similar exterior.
How to Choose the Correct Version
- Confirm the selected option, assembly state, color or bundle before adding the item to the cart.
- Use the specification table and gallery to verify the power source, cooling method and visible accessories.
- For fuel, heat or live-steam products, confirm that you have the required operating experience, ventilation and safety equipment.
- For RC installation, measure the available envelope and verify the drivetrain, mounting, cooling and starting-system requirements.
Compatibility and Pre-Purchase Checklist
- Space: compare the published dimensions with the intended bench, hull, airframe, display case or driving area.
- Power: identify whether the selected version needs an external boiler, battery, charger, radio system, spindle tooling or other equipment not included in the package.
- Skill: match the product to your experience with assembly, calibration, fuel, live steam, CNC toolpaths or RC control.
- Evidence: treat supplier performance figures as configuration-dependent claims; use the gallery and manual to verify the delivered version before operation.
Safety and Operating Guidance
This is specialist model or workshop equipment, not an unsupervised children's toy. Keep moving parts guarded from loose clothing and hair. Operate fuel, steam, high-heat, strong-magnet or powered equipment only with the controls appropriate to that hazard. Use eye protection, follow the supplied manual and never exceed specified fuel, electrical, pressure, temperature or tooling limits. Use only a compatible regulated steam source with a proven pressure limit, secure every hose and shield the rotor area. Wear eye protection, keep clear of the shaft and blades, depressurize before adjustment and allow the turbine and condensate to cool before handling.
Frequently Asked Questions
What does this model or tool actually demonstrate?
The specification table distinguishes fuel, steam, electric, magnetic, mechanical and workshop equipment. A moving model or compact tool should not be interpreted as full-size certified industrial equipment.
Does the selected version change the price?
Where options are present, each value uses the corresponding product configuration price. Review the updated price and option label before checkout.
Are the exact accessories shown included?
Only the components described by the selected configuration are included. Lifestyle scenes and engineering diagrams explain use or structure and should not be treated as a packing list.
Who should buy this model?
It is intended for experienced adult steam-model operators comparing rotary steam conversion with reciprocating model engines and able to supply a compatible regulated steam source. Beginners should start with an electric simulation; fuel and live-steam products require experienced adult operation.
Evidence Boundaries
Dimensions, materials, bundle contents and performance figures are attributed to the supplier listing unless the table states otherwise. The independent sources below explain general engineering, workshop or operating-safety principles; they do not certify, endorse or test this individual product. EnginesDIY does not convert a supplier statement into an independent laboratory result.
Independent Engineering and Safety References
The following sources support the general engineering or safety guidance on this page. They do not endorse, test or certify this specific product.
- U.S. Department of Energy: Improving Steam System Performance — authoritative engineering context for steam generation, distribution and use.
- NASA Technical Reports Server: Gas Turbine Components — primary technical literature on aircraft gas-turbine architecture; the listed steam model only borrows aircraft-like geometry.
- Smithsonian: Mechanical and Civil Engineering Collections — historical context for steam machinery and mechanical engineering artifacts.
- OSHA: Hazardous Motions and Actions — rotors, shafts and couplings create contact and entanglement hazards.
- NIST: SI Units — measurement reference for pressure, rotational speed, dimensions and mass.
