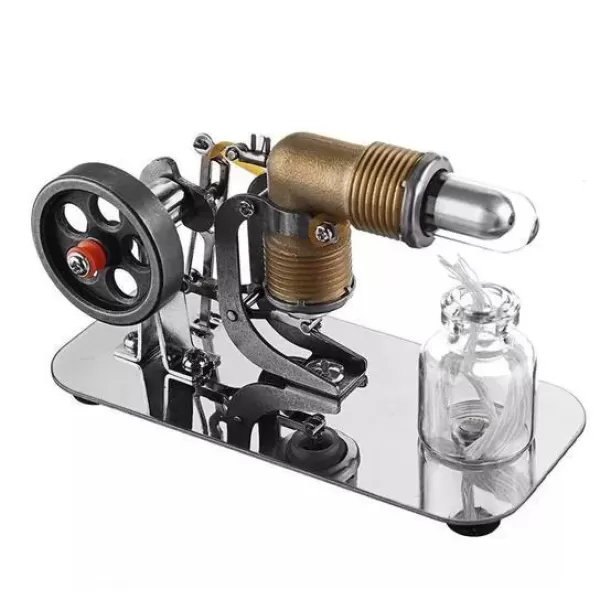

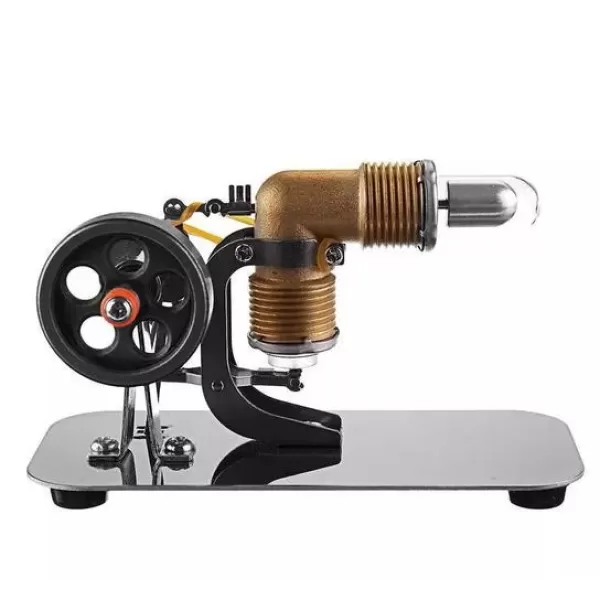

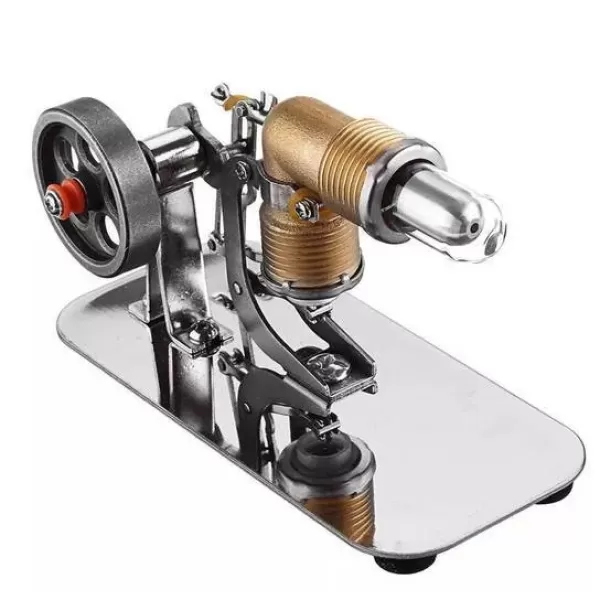

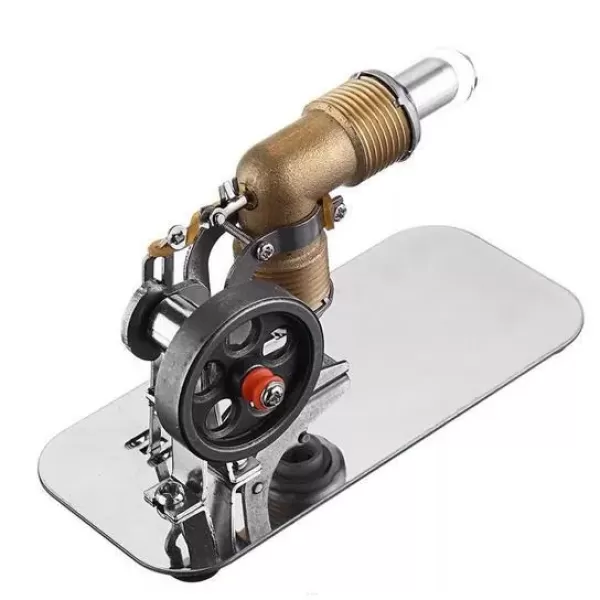

Quick answer: This pocket-size, alcohol-heated Stirling engine is a ready-to-run mechanical demonstration, not a DIY parts kit or an electricity generator. Its compact metal frame, brass cylinder, refractory-glass hot end and visible flywheel make the heat-to-motion cycle easy to observe on a desk or in a supervised classroom.
What makes this model different?
The supplier specifies a 100 × 45 × 50 mm footprint and an approximately 200 g model. Compared with a larger desktop assembly kit, this version is intended for portable, close-up observation. Heat at the glass cylinder creates a temperature difference; expanding and contracting air drives the mechanism and flywheel. It does not burn fuel inside the working cylinder.
What's included
- One assembled mini Stirling engine model
- Two spare glass tubes and two spare O-rings
- One cotton thread and one alcohol pipette
The supplier's packing list does not establish that fuel is included. Obtain suitable fuel locally only where permitted; never ship or assume the package includes alcohol.
Set up and operate safely
- Place the engine on a stable, heat-resistant surface away from paper and fabric.
- Follow the supplied instructions for the alcohol burner. Use only the fuel specified by the maker; never substitute gasoline, kerosene or lighter fluid.
- Warm the glass hot end, then gently start the flywheel as directed. Keep hands, hair and loose clothing clear of the mechanism and flame.
- Extinguish the burner and let the glass and metal cool completely before moving or servicing the model.
This is a supervised demonstration for ages 14 and over, not an unattended toy. The maker quotes a possible operating speed of 1,300–1,500 rpm, but actual speed depends on temperature difference, setup and condition; it is not a guaranteed output specification. No electrical load or generator is included.
Choosing the right Stirling model
Choose this mini motor if you want a small assembled hot-air engine. Choose a separate DIY Stirling kit if the assembly process is the goal, or a generator model if you need a demonstrable LED output. Check the photos and included-parts list before ordering.
